XD1 Type Limited reactor

Print current page

Product Description

  • brief introduction
  • technical parameter
  • Product size

General

XD1 type Limited reactor is dry reactor which take?unsaturated selectron irrigate pour low voltage capacitor?joint switch current and increase joint brake switch?breaking capacitor voltage power whole set equipment.

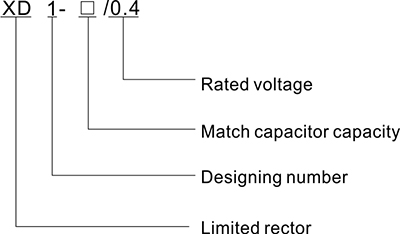

Model and implication


Usage condition?

Altitude not more than 1000m.

Ambient temperature; -5℃~+24°, averagre?temperature not more than +35℃ within 24 hours.

Ambient medium: there is no explode combustible,?there is no air which can damage and corrode?metal, no dust of conduction.

The relative humidity not more than 80%.

There is no heavy vibrate and welter, installation?gradient not more 5 degree.

Installation place no sun indicate radiate, no?snowing and virus.?

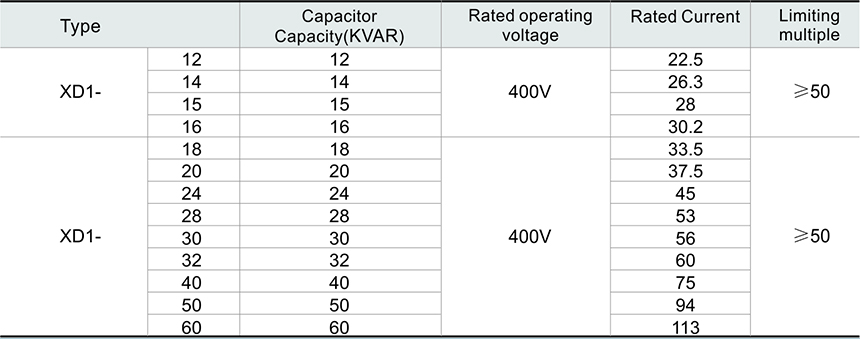

Main Technical data

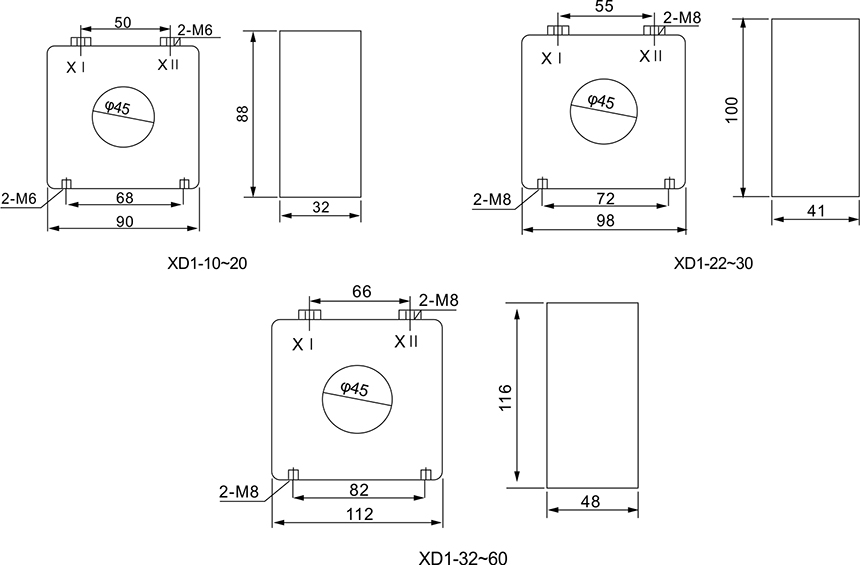

Outline and mounting sizes
